​Technological carts

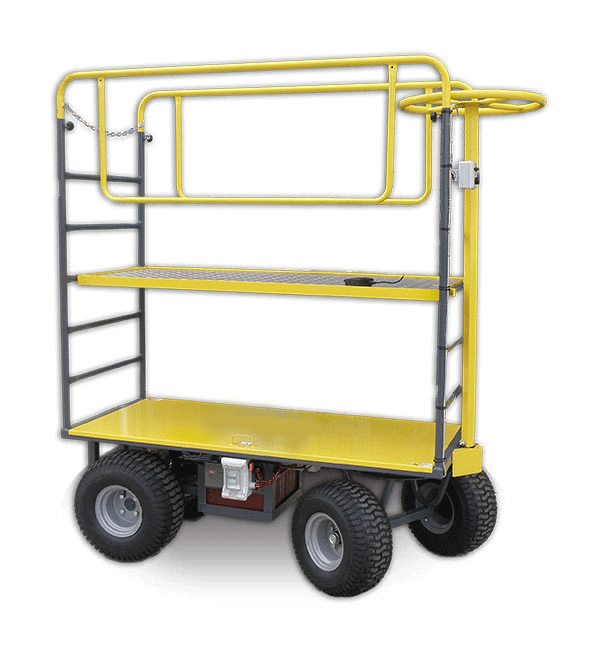

​"Terrain" technological trolley used for palisading works at height, electric movement, manual lifting
Engine Power: 0.56kw, (0.75CV)
Maximum speed: 2000 rpm
Voltage: 24V DC
Intensity: 22A
Reduction ratio 1:90
Starting speed 22 rev/min
General characteristics :
Max advance speed 40m/min
Forward and reverse speed adjustment with acceleration ramp and soft braking
Maximum capacity: 1 person + maximum equipment 120kg
Wheels: 460x240
Batteries: 2 batteries in series
Characteristics :
Type: Acid - Lead
Voltage: 12V
Capacity: 148Ah
Battery charger: Power outlet: 230V -50/60Hz
Output: 12-24v/24A
Weight and Dimensions:
Maximum capacity: 1 20kg
Total length: 1 700mm
Minimum platform height: 850mm
Maximum platform height: 2500mm
Min. wheel width: 859mm
Weight: 303kg

​









​

​

​

​

​

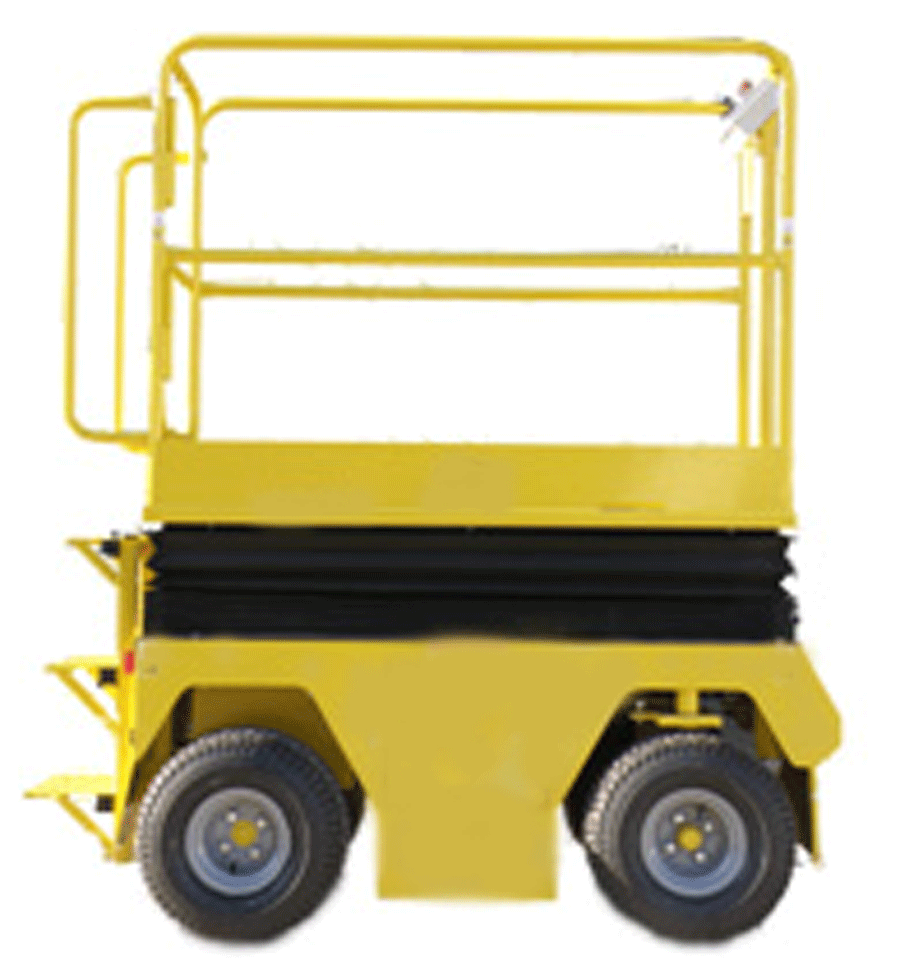

​"Terrain" technological trolley used for palisading works at height, electric movement, hydraulic lifting



Traction: 4x4 Engine power: 1.75CV Maximum travel speed: 24m/sec Forward and reverse speed adjustment with acceleration ramp and soft (progressive) braking Hydraulic lifting scissors Average lifting speed: 4.7m/min Total lifting time: 32sec Maximum height of the platform: 2.7m Maximum working height: 4.7m Maximum load: 120kg Battery charge indicator Door security opening Non-slip platform floor Tilt 2º. Automatic battery charger built into the car The 4x4 traction allows driving on all types of terrain, even on sand. The hydraulic shears allow a working height of 4.7m OPTIONAL: the cover protects the shears against dirt and prevents accidents (not included in the standard price)

Engine:

Power: 1.30kw, (1.75CV) 4x4
Voltage: 24V DC
Intensity: 17A
Hydraulic power 0.8kw
Pressure: 100barr
Weight and dimensions:
Weight: 546kg
Maximum load: 120kg
Length: 1590mm
Minimum platform height: 644mm
Maximum platform height: 2700mm
Maximum working height: 4700mm
Width: 740mm

​


​



HARVESTING CARTS
For 2 crates
Extendable tray to adapt to different lengths of crates
Wheel
